19′ Deluxe Trailers

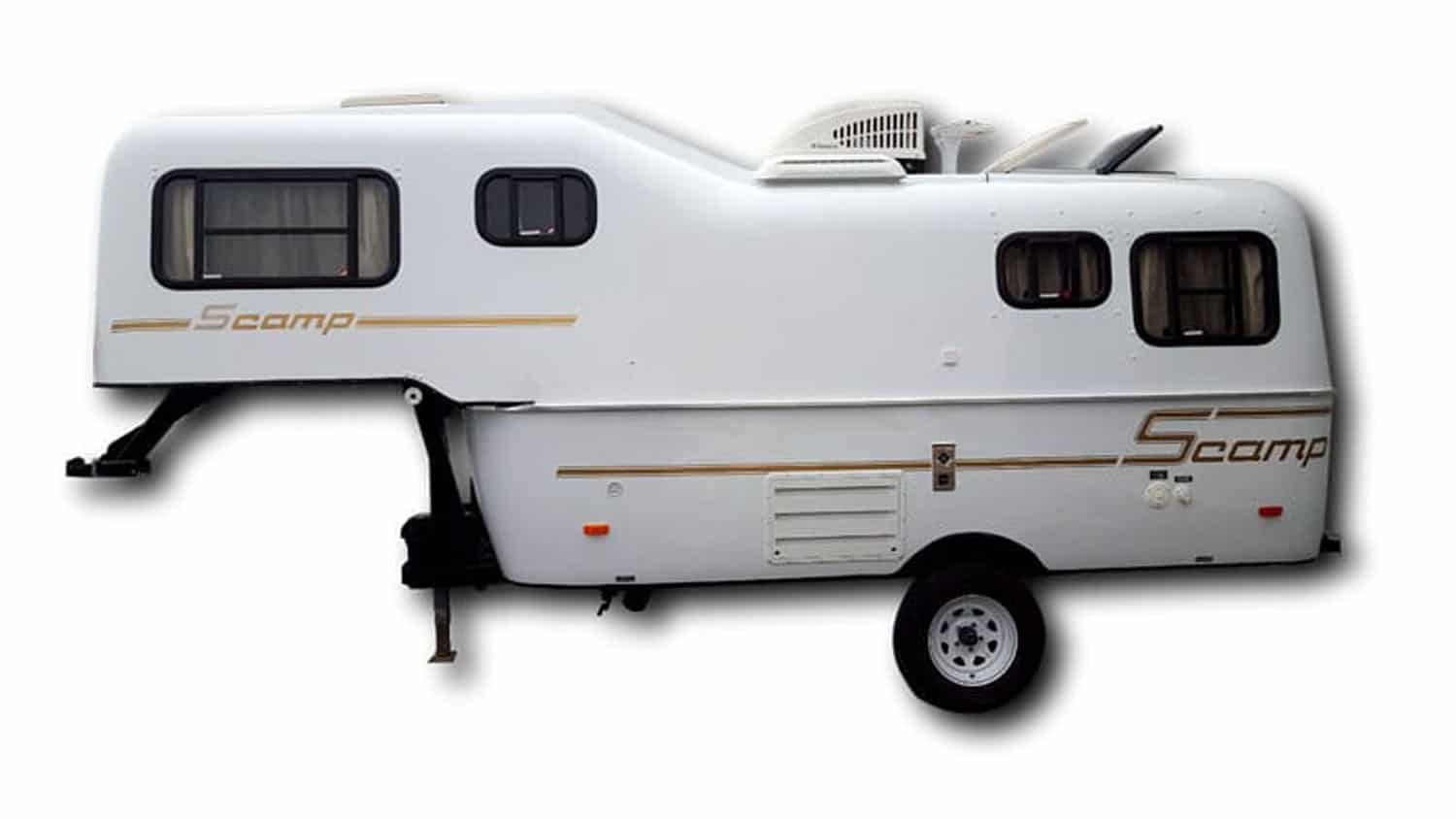

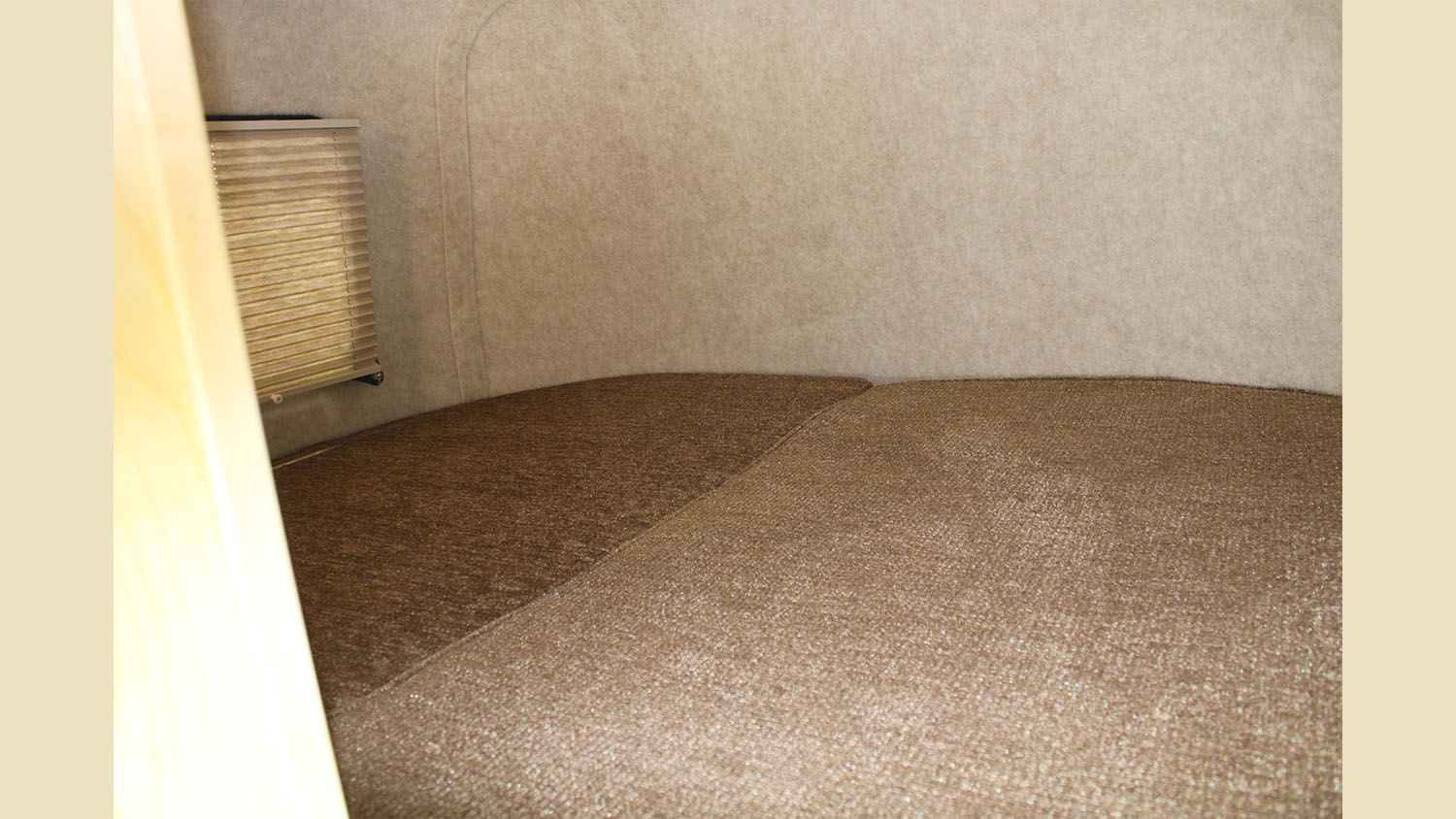

All the great features of the Scamp 16′ with more sleeping space. Scamp’s 19′ 5th wheel is the largest of the Scamp line. Featuring a queen size loft bed with 5” cushions, the 5th wheel can sleep up to 6 people.

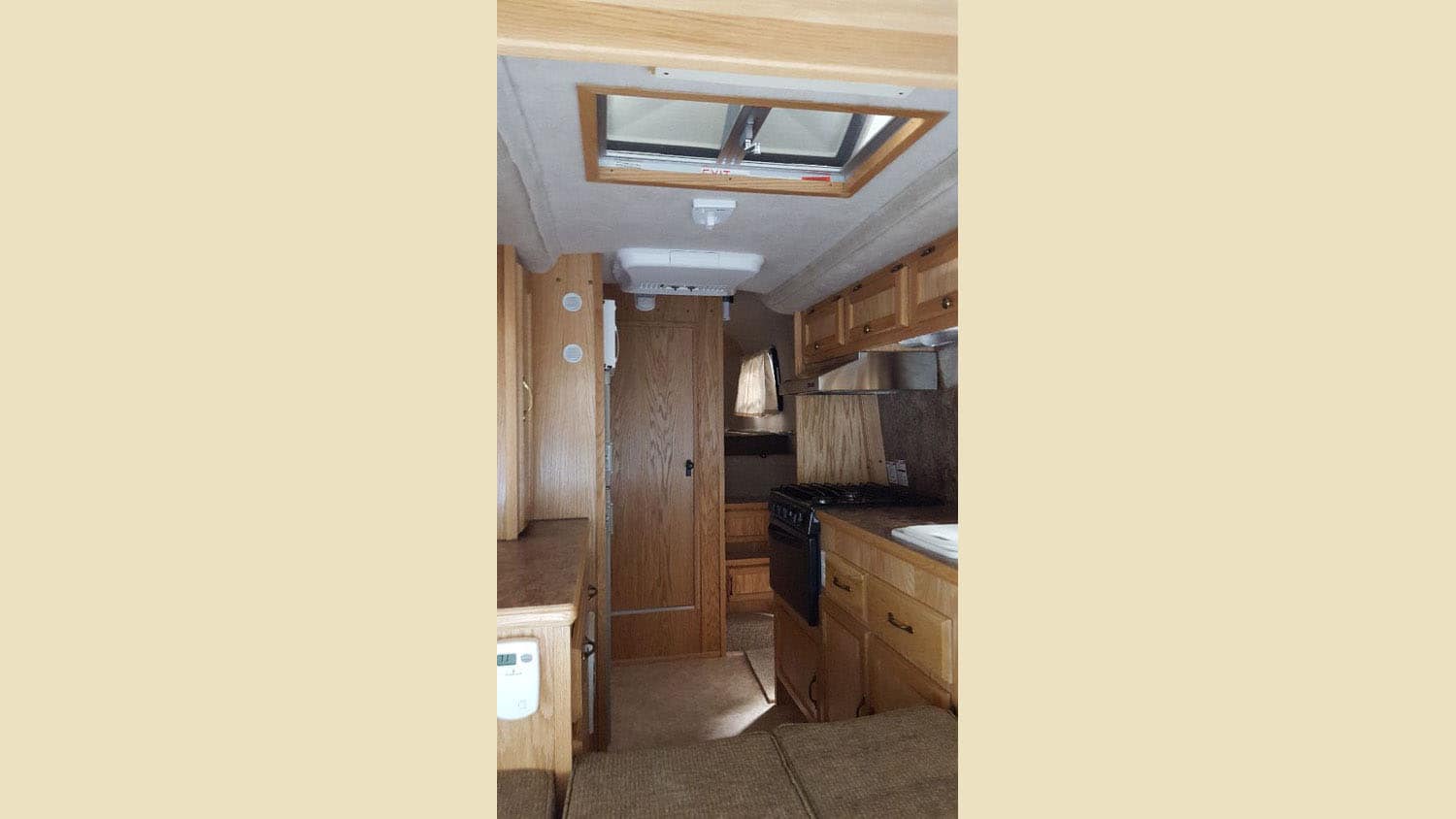

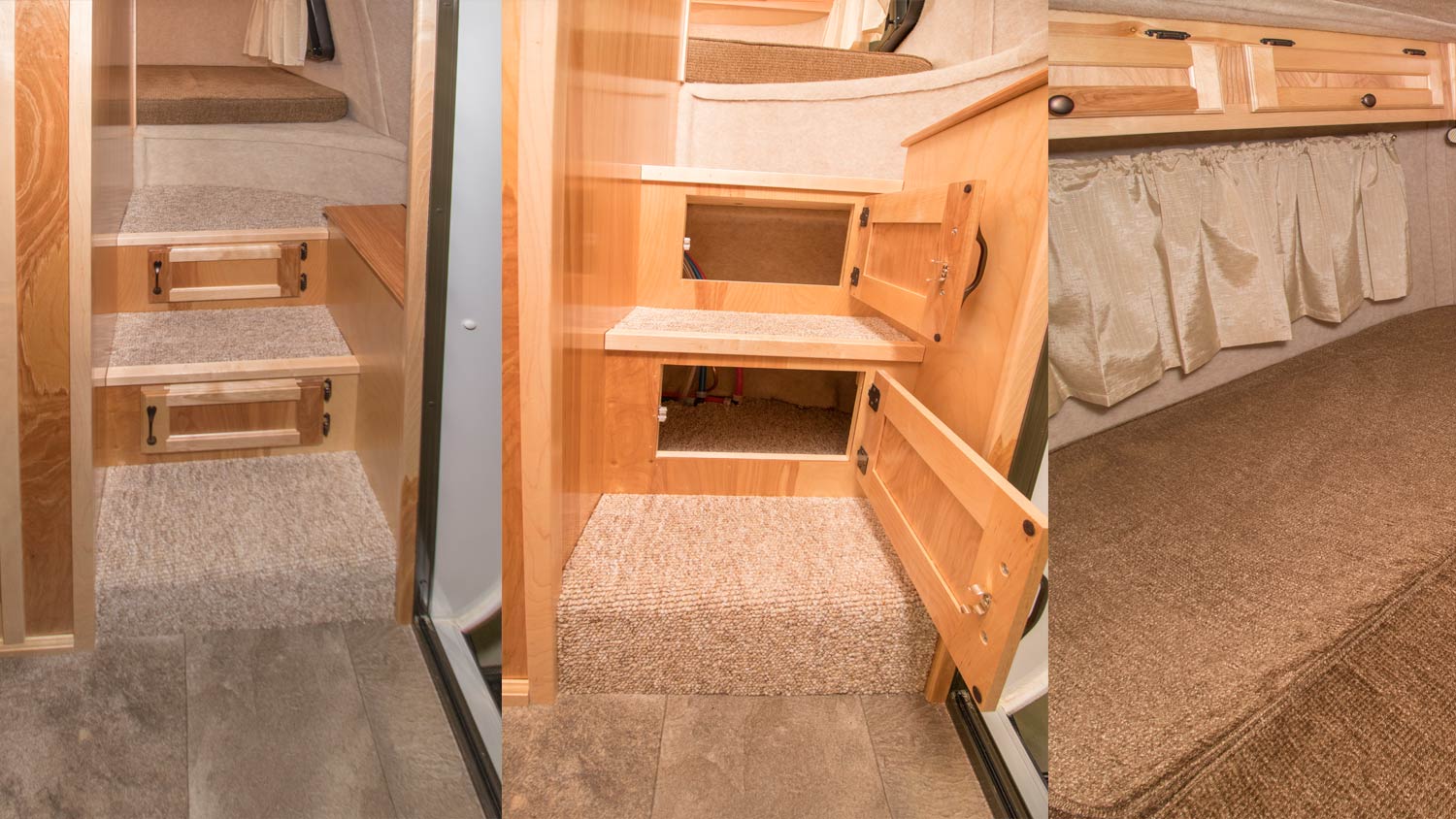

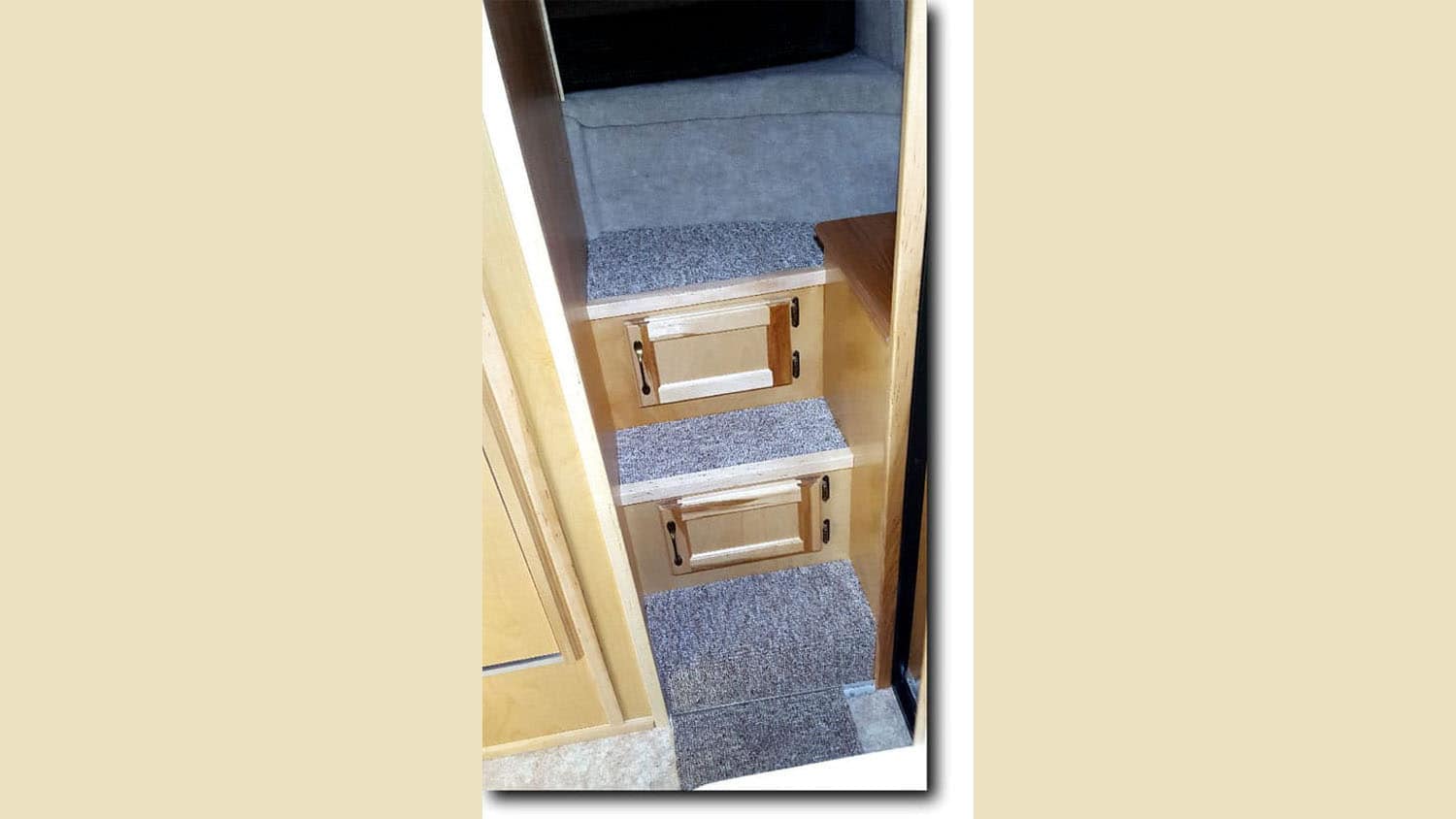

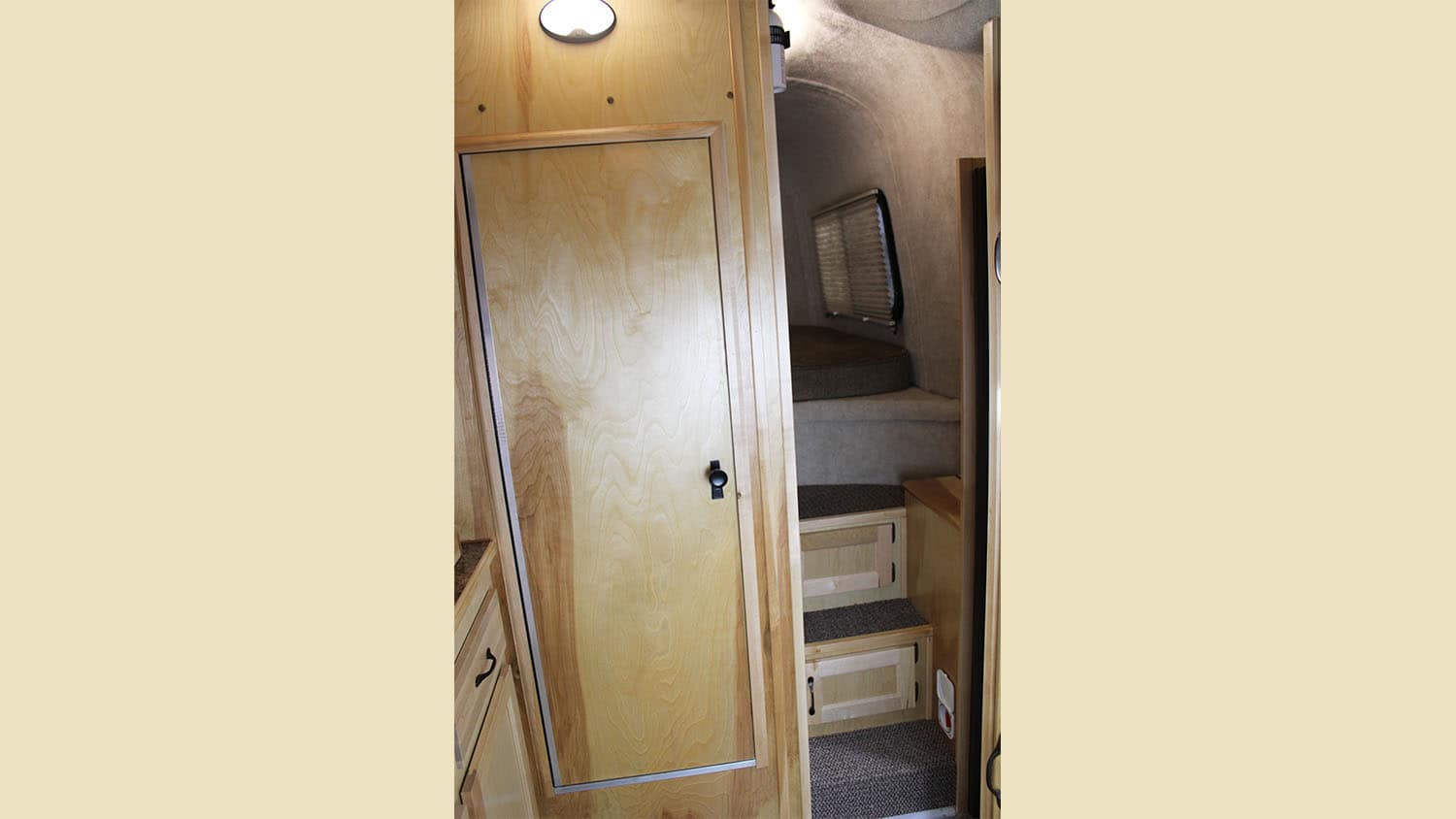

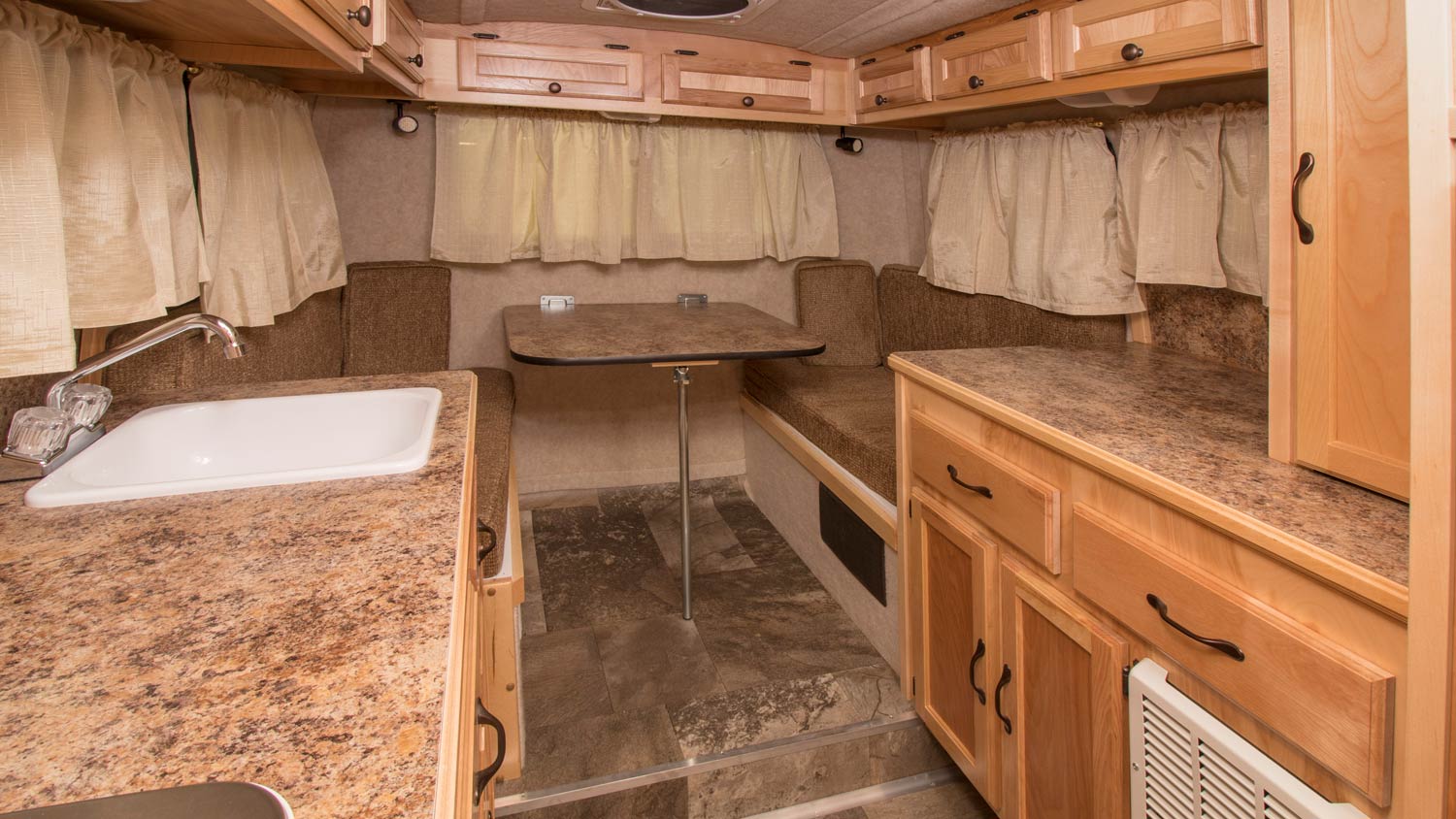

The 5th wheel offers the side bathroom option, as well as rooftop AC. The interior is standard brown and beige with fiberglass cabinets and wood panel doors. While the 5th wheel is our largest trailer, it pulls easily, weighing less than many smaller trailers. The deluxe 5th wheel features a stairway to the loft bed. The bathroom separates the loft from the main floor, providing a quieter and more private area to sleep, or curl up with a book.
Scamp 19′ Deluxe Floor Plans
All the great features of the Scamp 16′ and more sleeping space! (click on floor plan for larger view)
Layout A

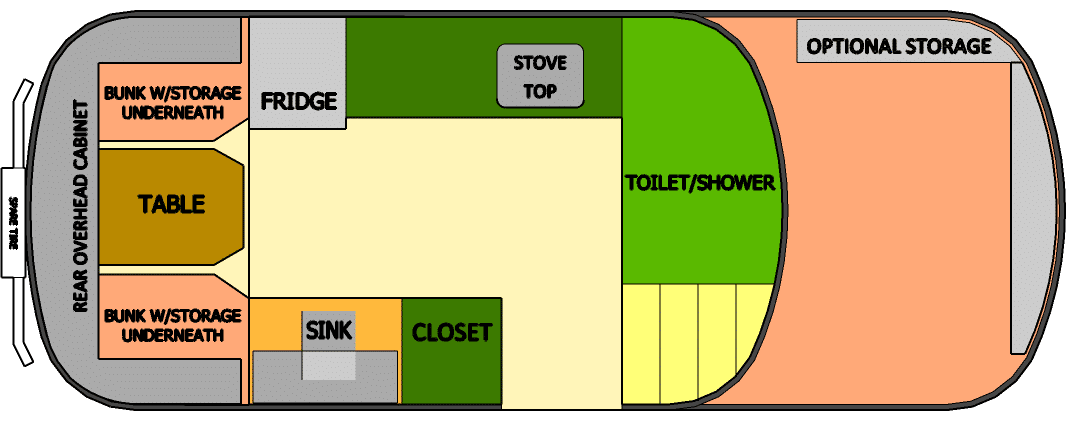

Layout B
Additional Floor Plans: Click here to view Standard Trailer floor plans
Scamp 19’Standard Trailer Specifications/Features
- Fiberglass construction
- Overall length 19’
- Overall height 8’ 10”
- Overall width 6’ 8”
- Interior length 17’ 10″
- Interior height 6’ 3”
- Interior width 6’ 6”
- Super insulation (R15)
- 30 amp power converter
- 12 volt lighting

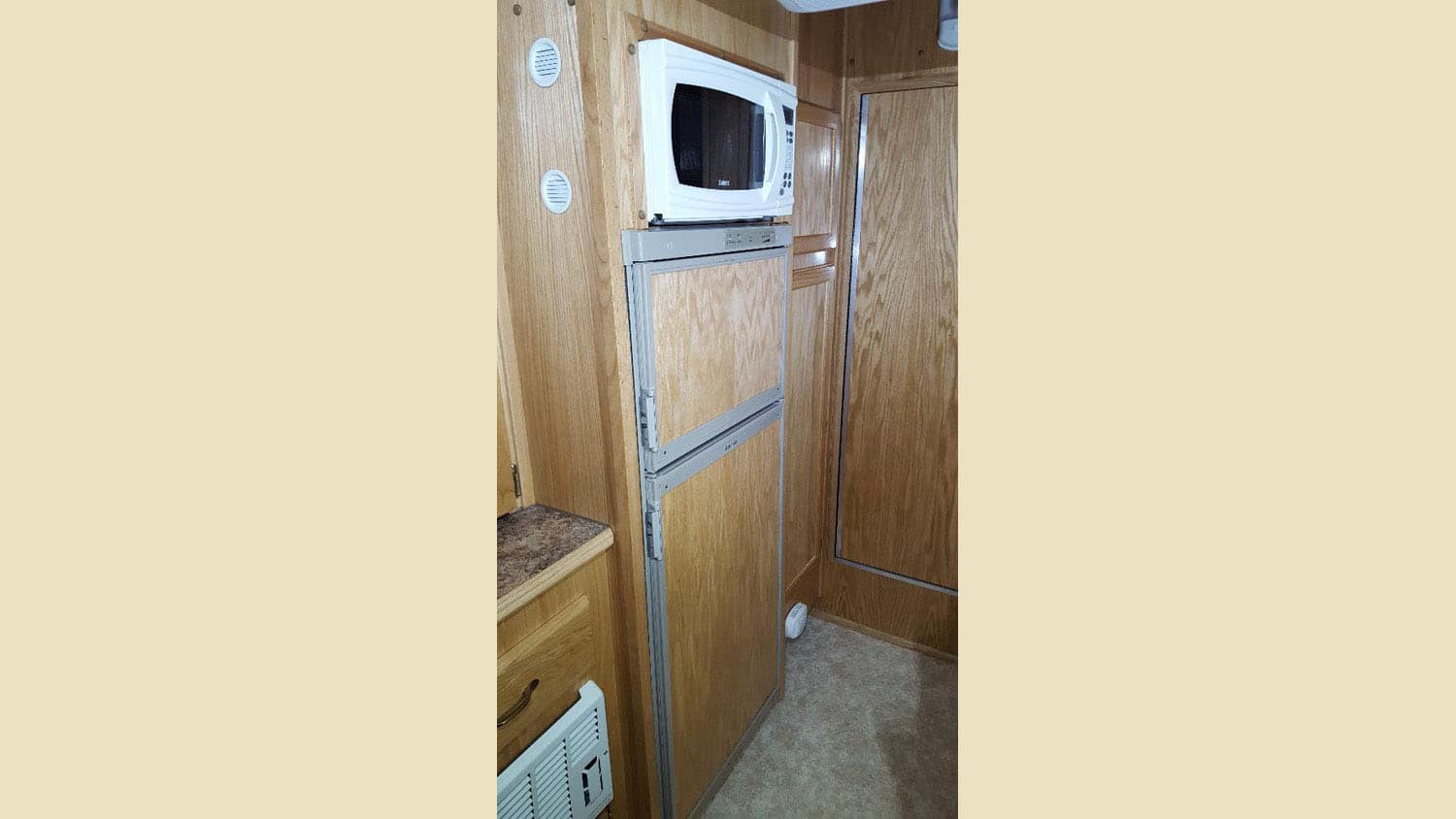

- 4.6 Cubic foot refrigerator
- 12 gallon fresh water tank
- Sleeps one to four

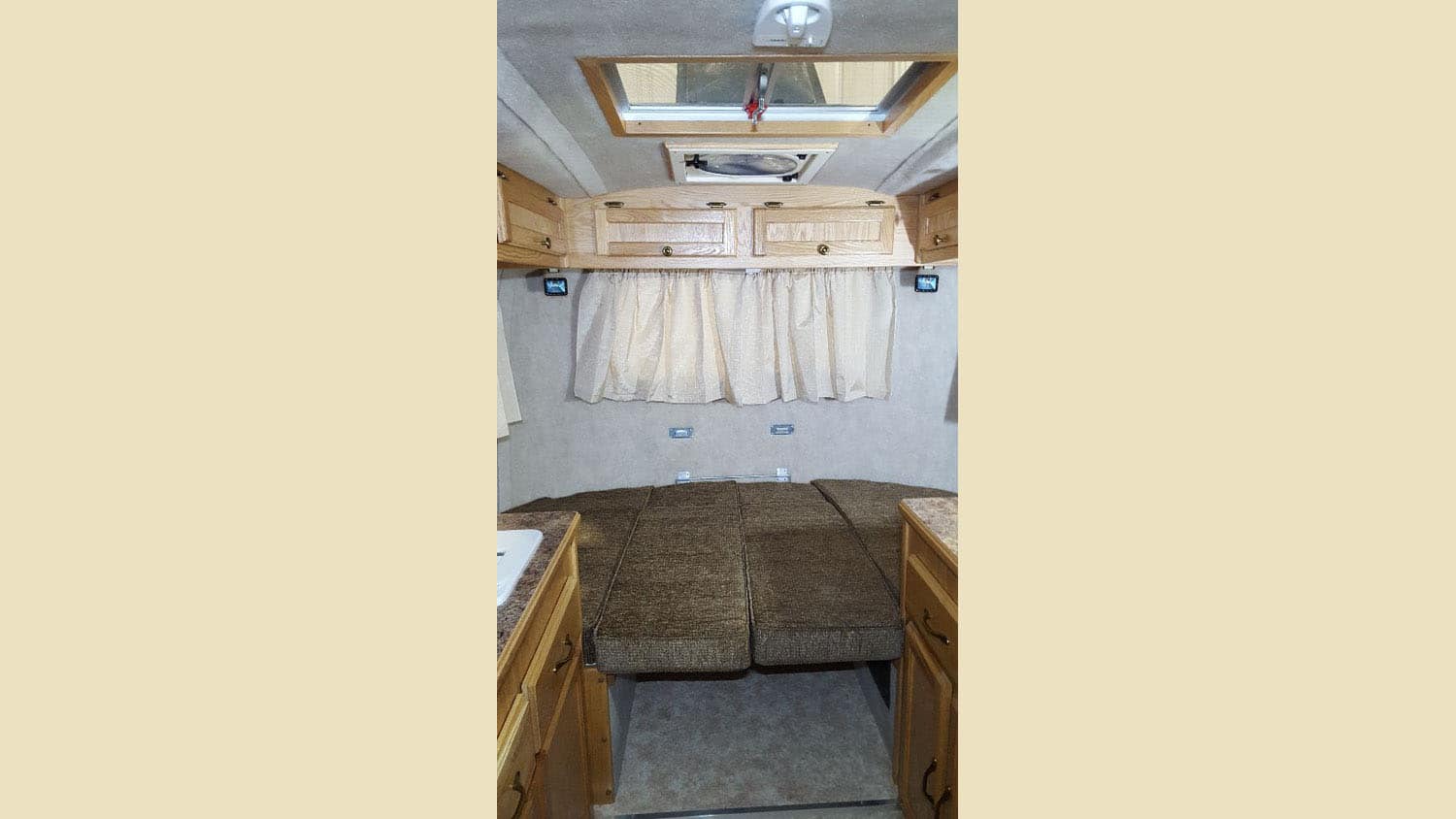

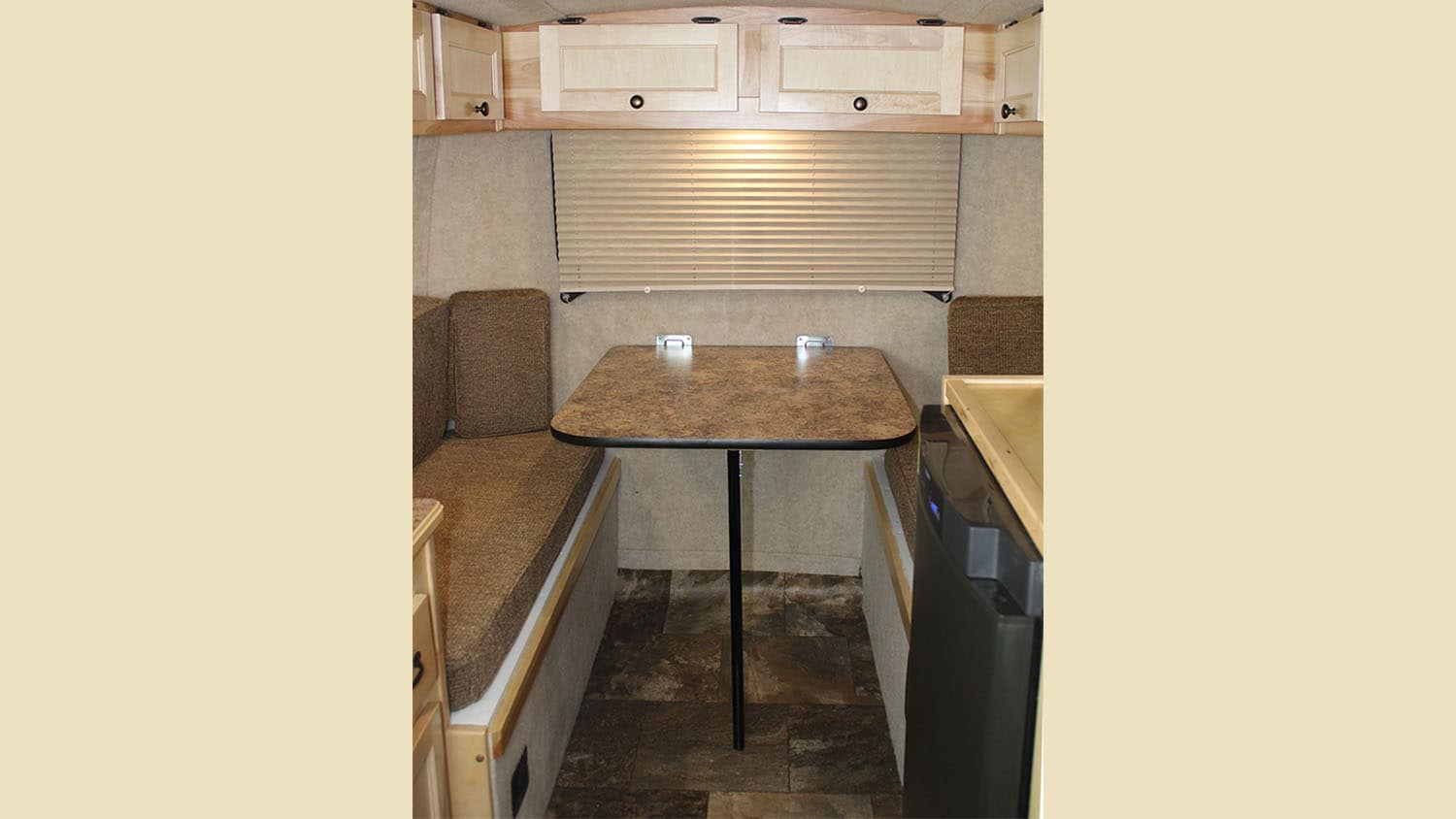

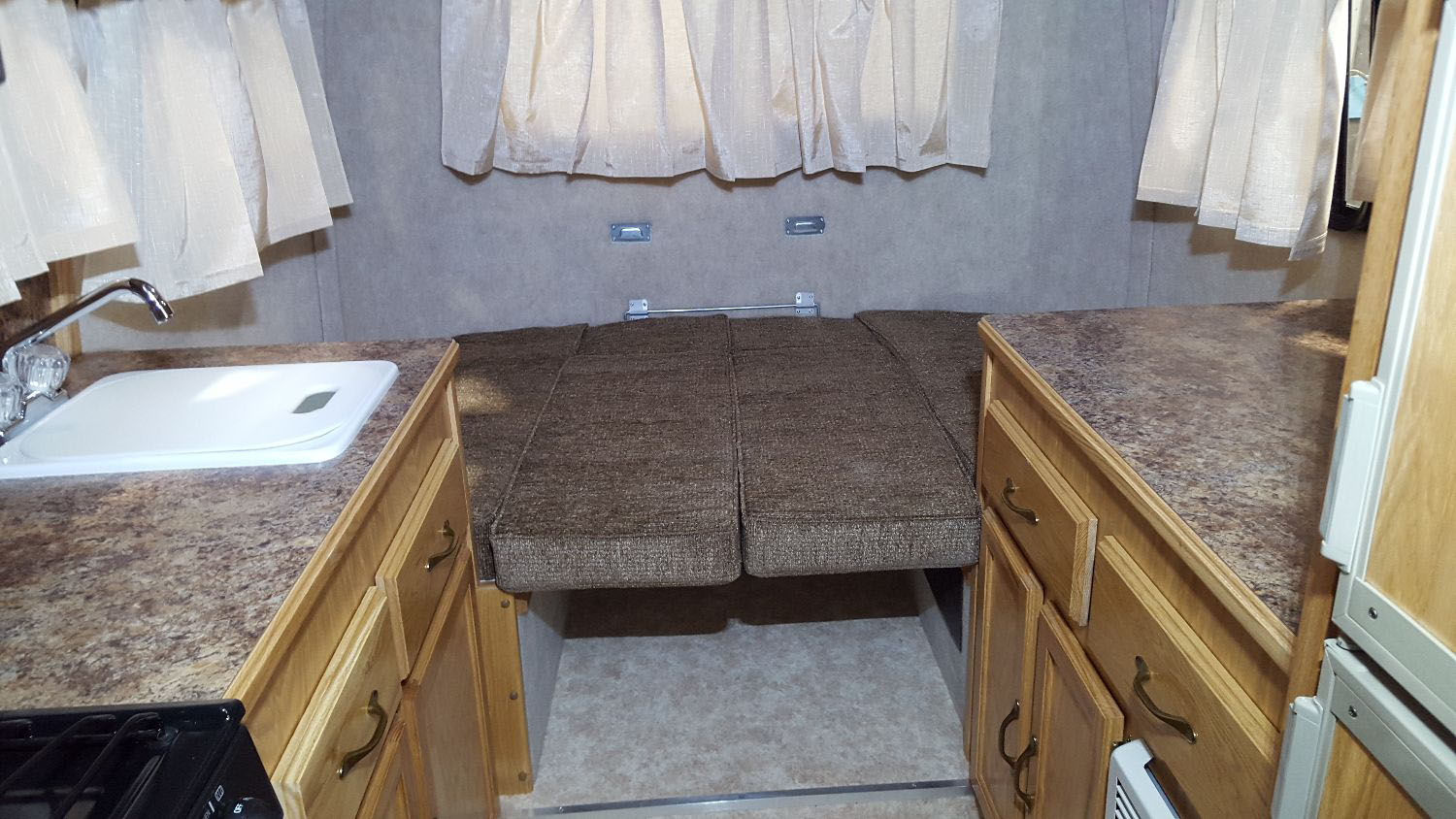

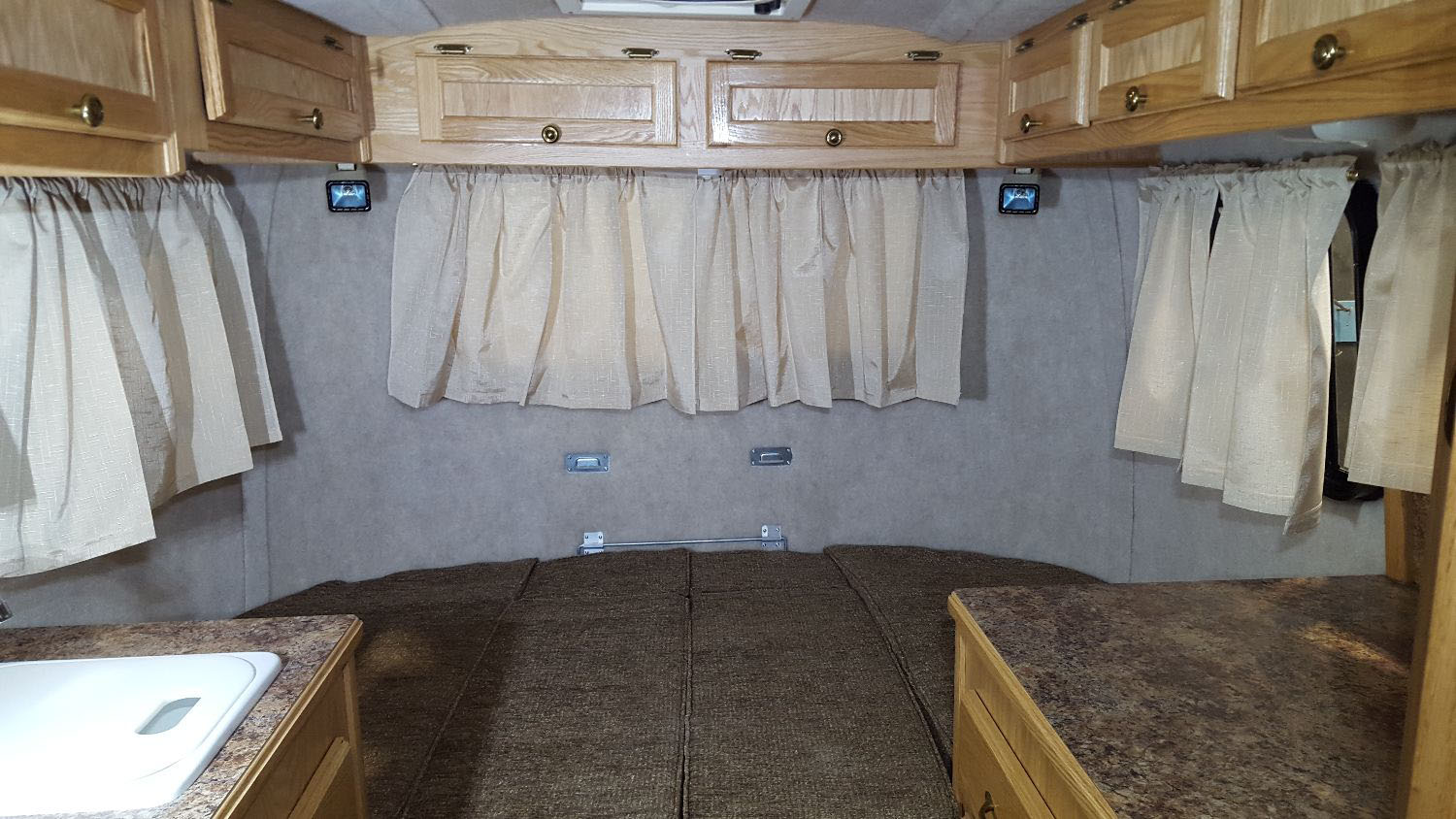

- Table converts to bed

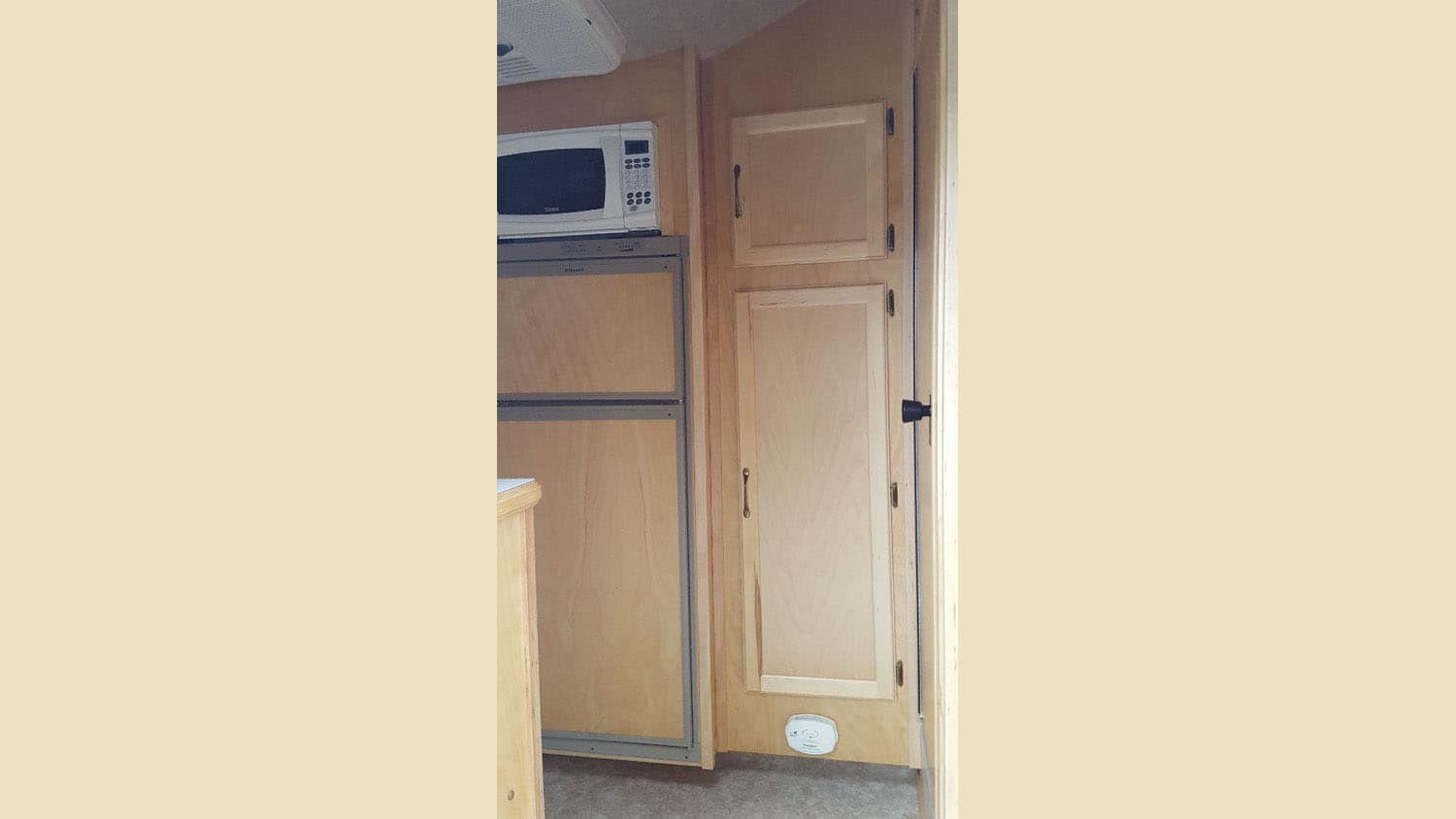

- Clothes closet by door
- Marine headliner wall fabric
- 4″ cushions/li>
- Oak and Birch cabinets

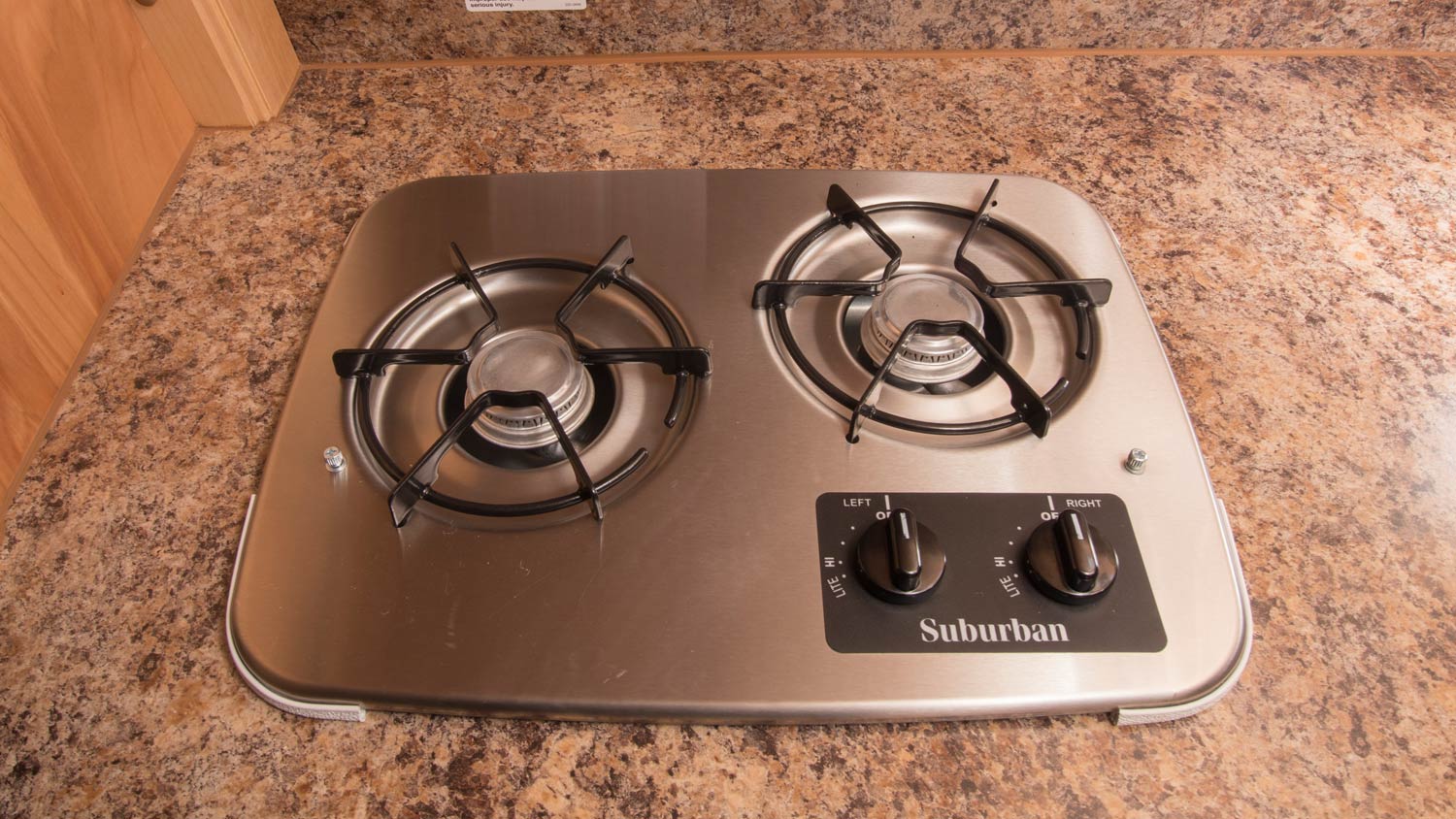

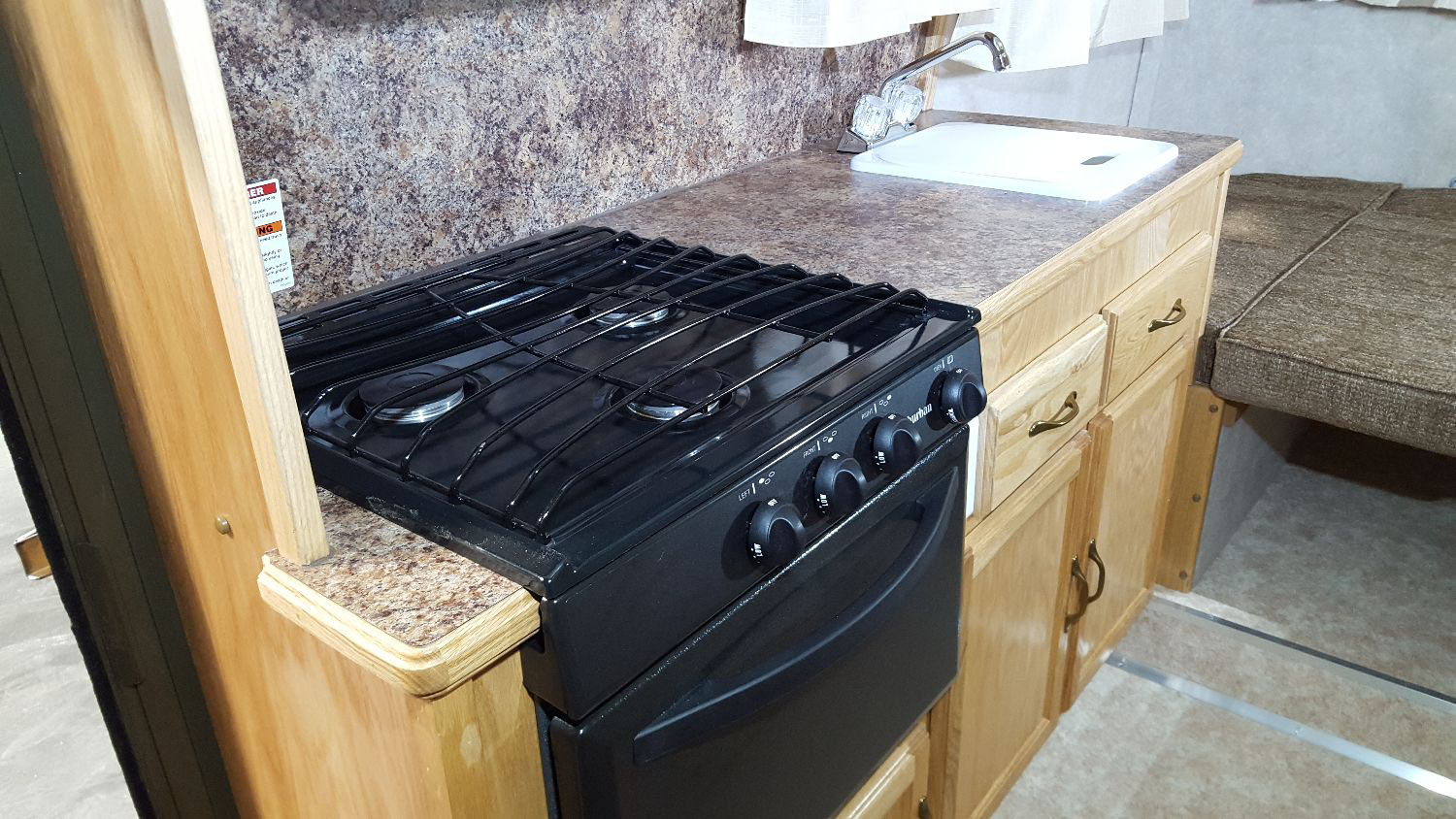

- Two burner propane stove
- Dual Propane tank

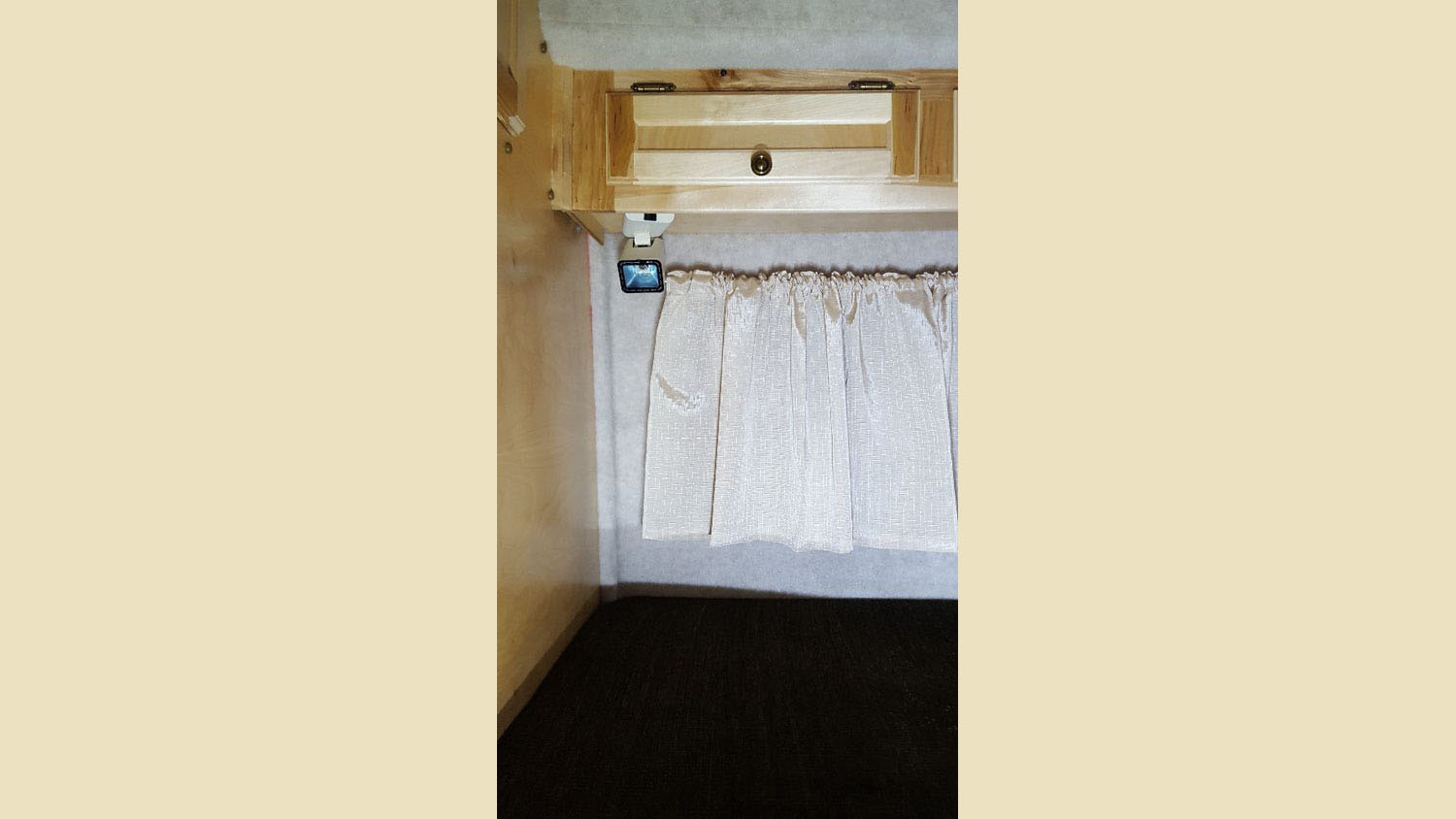

- Porch light

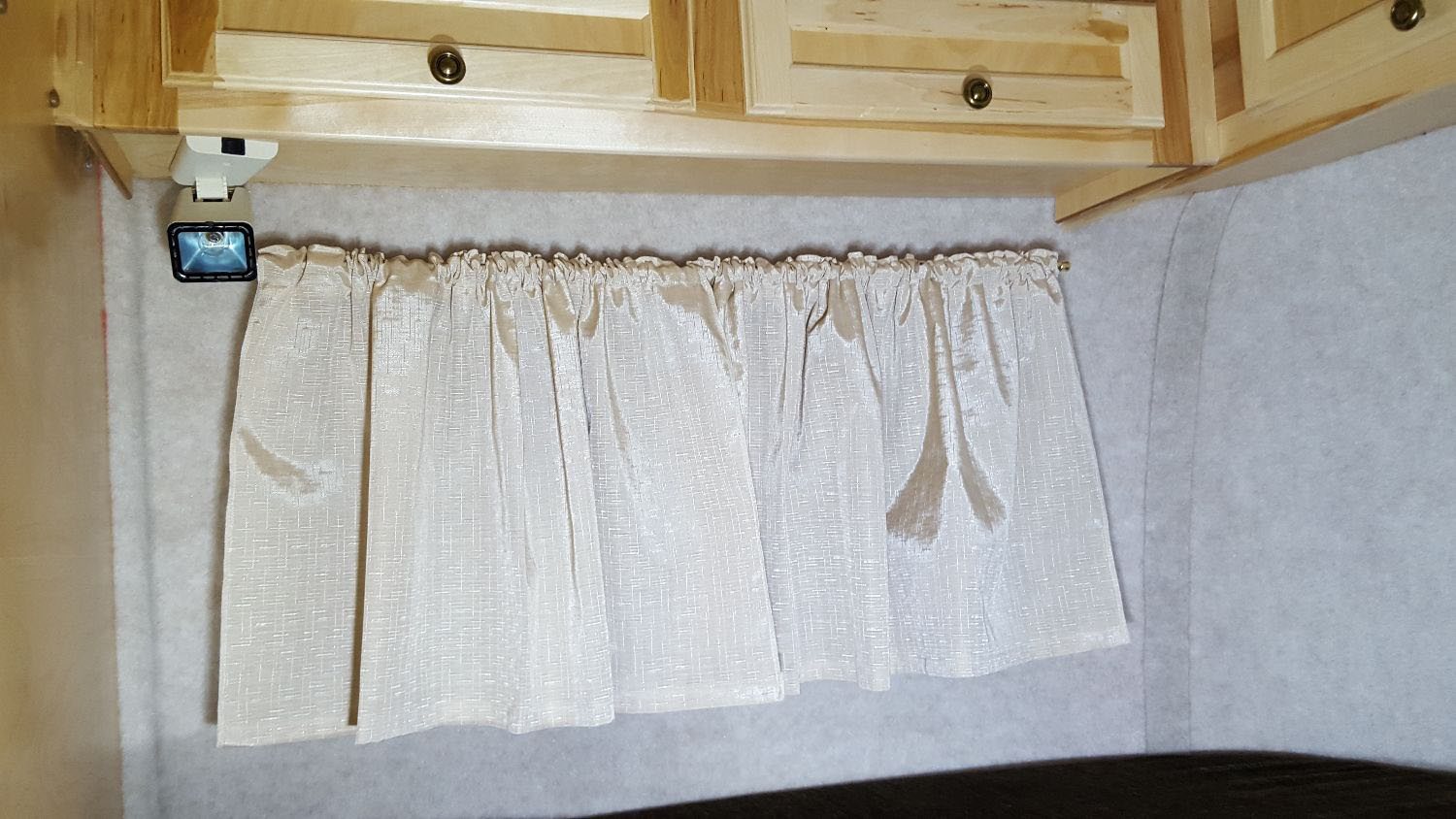

- Curtains

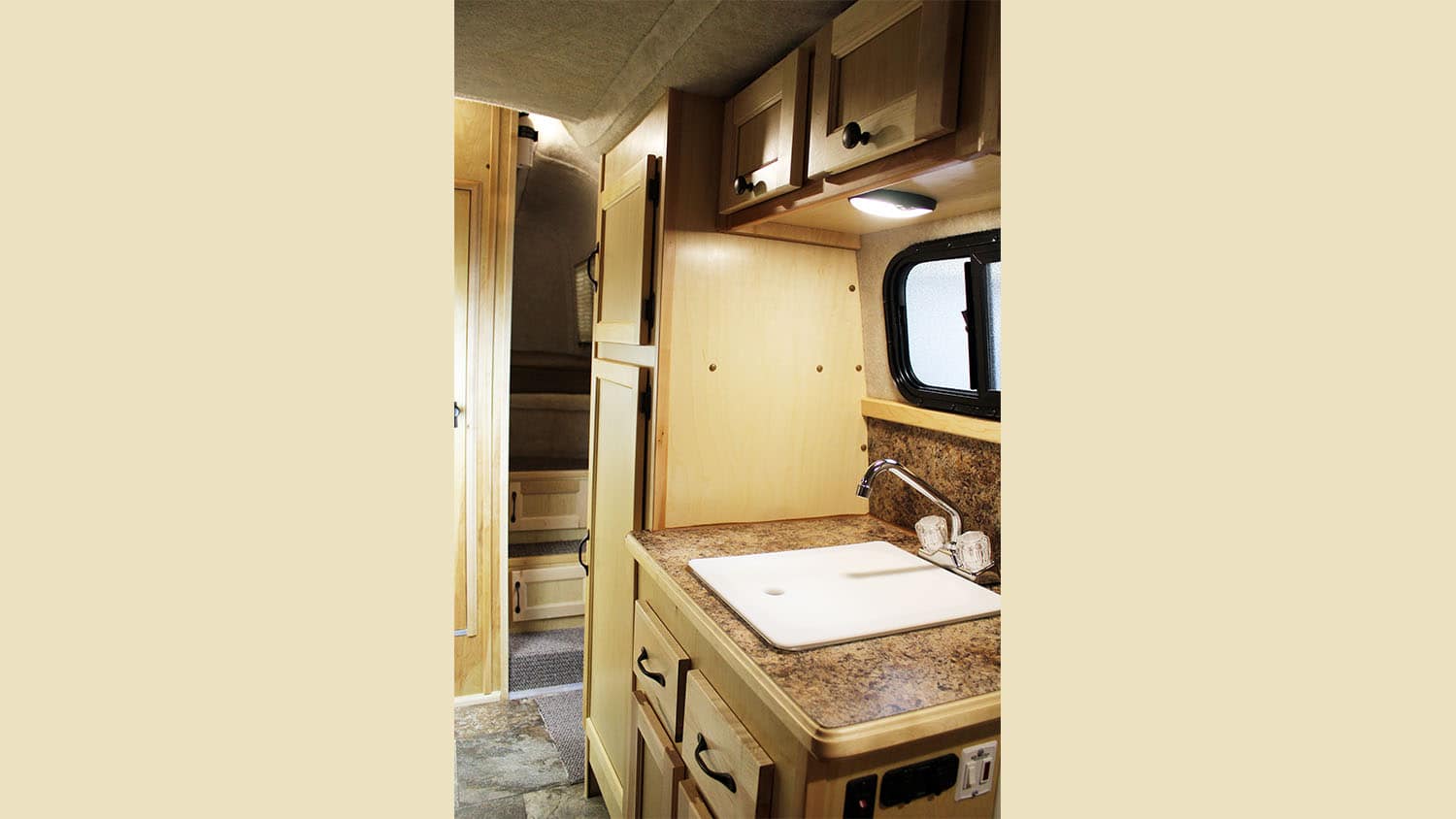

- Sink
- Cabinet over sink
- Silverware drawer
- Approximate weight 2400-2900

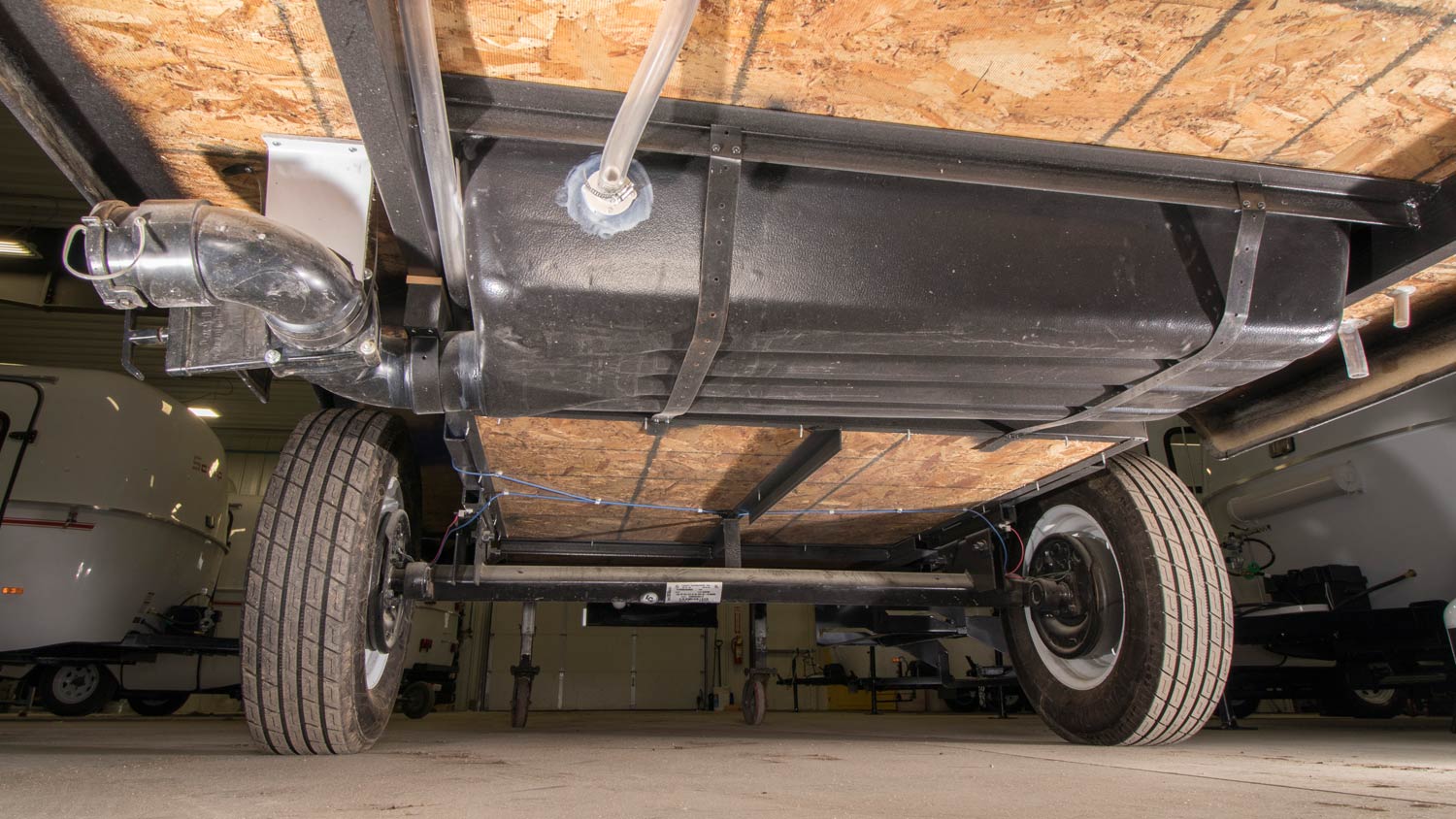

- 3500 pound torsion axle
- Hitch weight 400 pounds
- 10″ Electric brakes
- Hitch Ball size 2″
- 25ft 30amp electric supplycord
- Spare tire & cover
- Safety chains
- Tires: 14” C load radial
- 11 gauge steel tube frame
- Extra lights and outlets available
- Carpet or vinyl floor optional
- Rear side cabinets
- Crank open windows & screens
- Mounted rear stabilizer jacks
- Outside Step
- Battery pack
- Gravel shield
- Screen door
- Small window over range
- Rear upper cabinet
- Silverware drawer
- Built in Minnesota, USA
Scamp 19′ Deluxe Available Options
Standard
Available Option
Package
Not Available
| Options | 5th wheel deluxe layout A |
5th wheel deluxe layout B |
| Shower package | |
|
| Toilet only | |
|

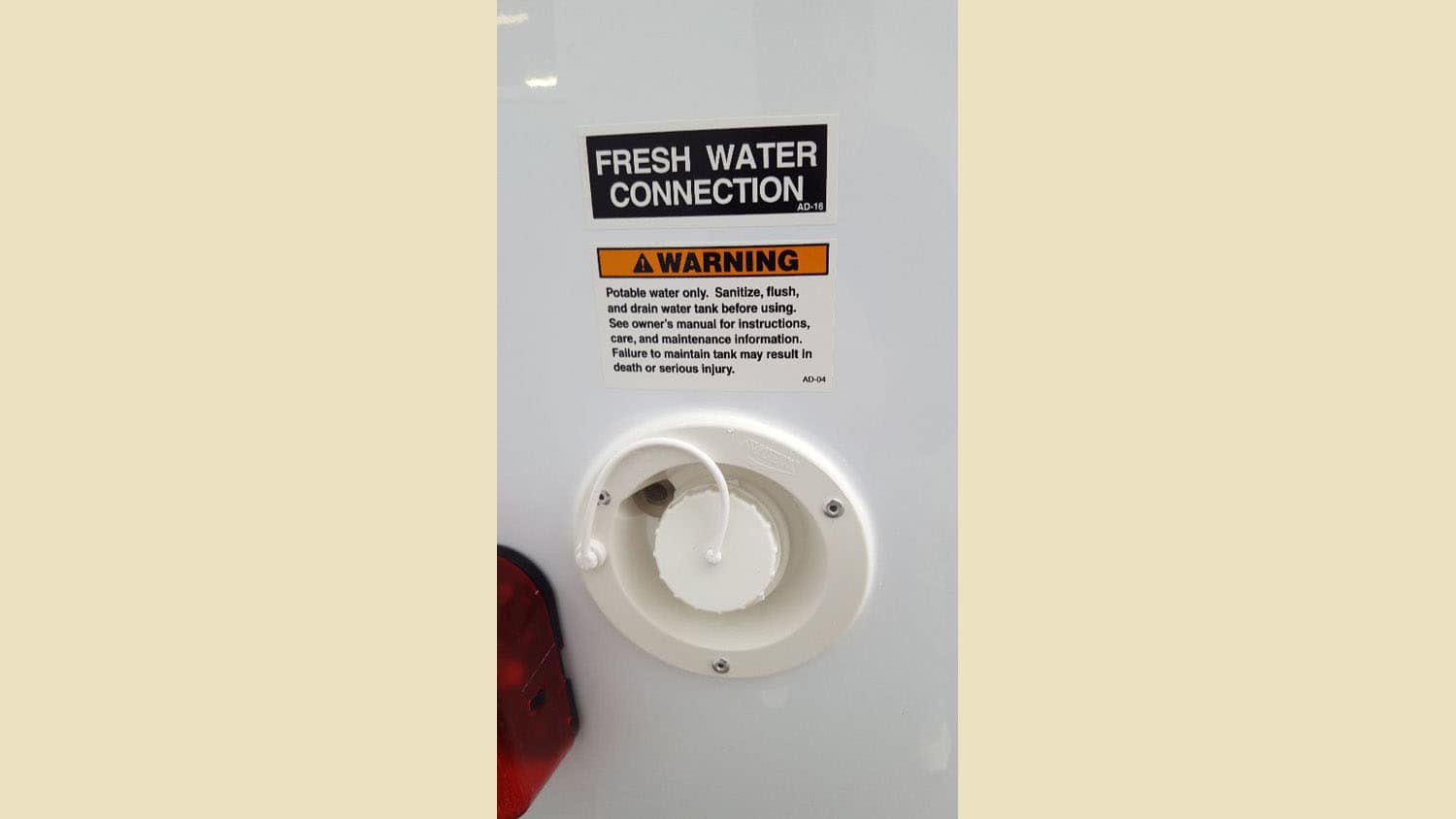

| City water | |
|
| Sani potti | |
|

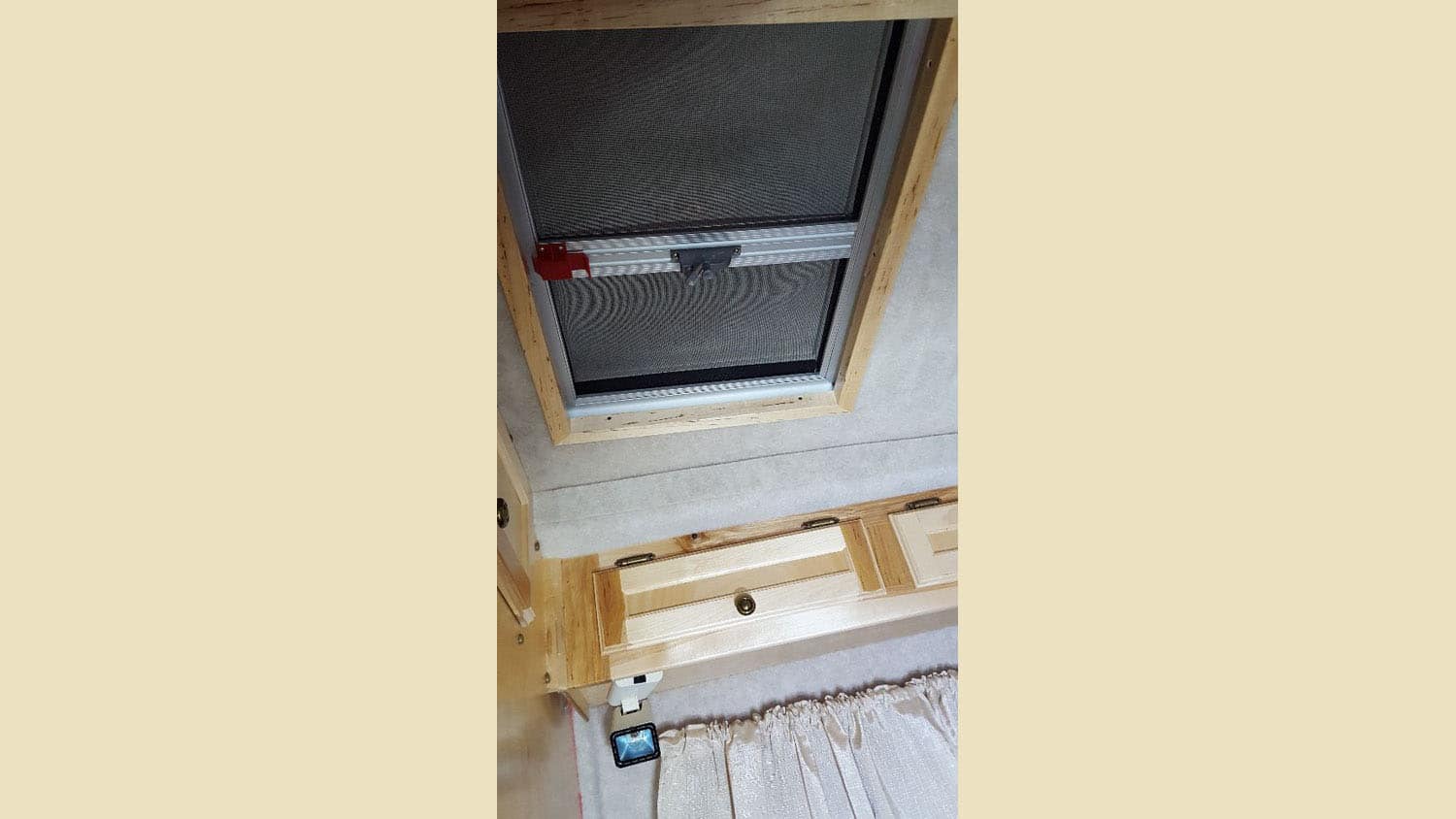

| Three speed roof fan | |
|
| Cable TV hook up | |
|
| Roof mount air conditioner | |
|

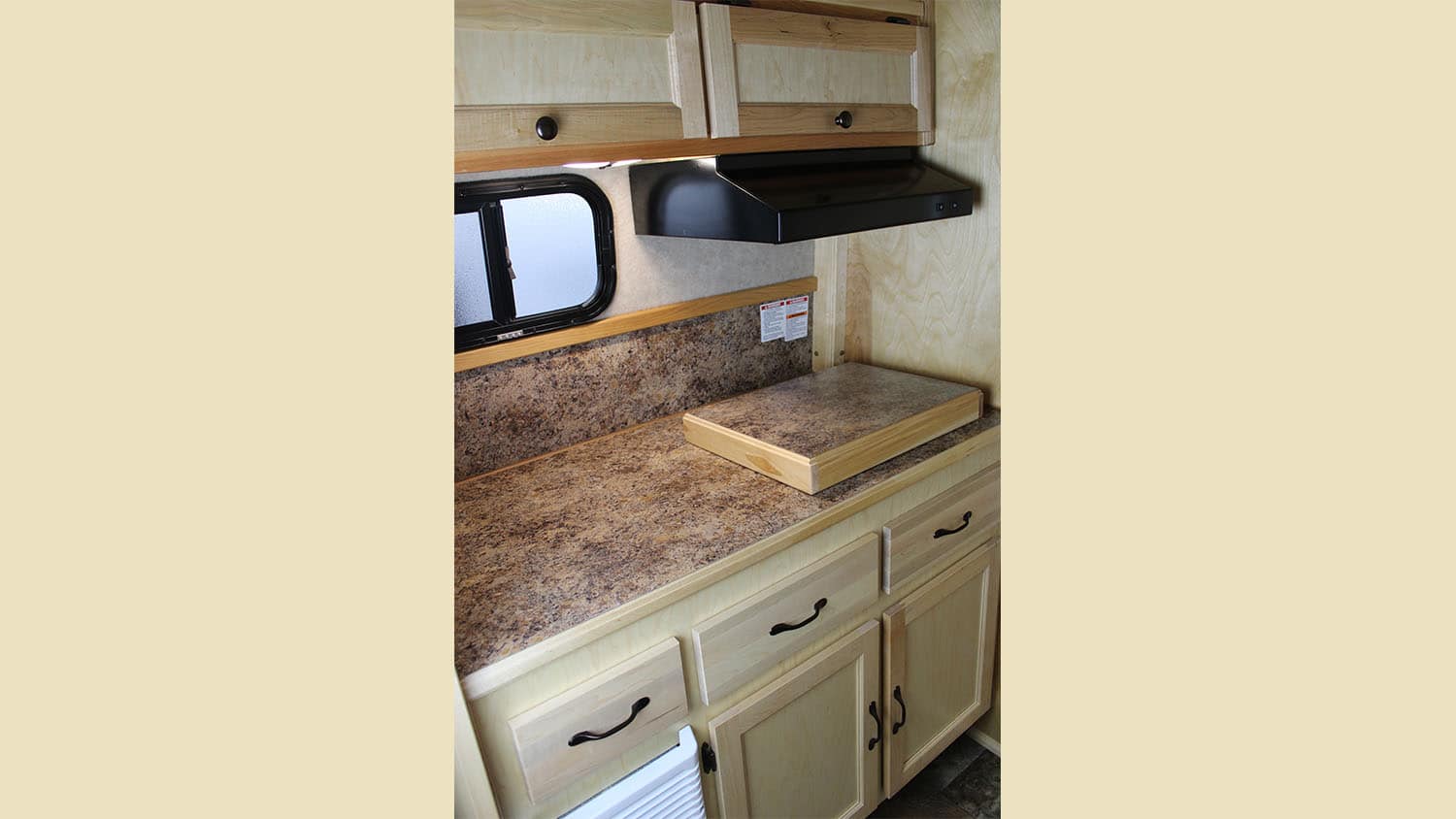

| Power range hood (12 volt) | |
|
| 1.9 cubic foot refrigerator | |
|
| 4.6 cubic foot refrigerator | |
|
| 6.0 cubic foot refrigerator | |
|
| Furnace (16,000 BTU) | |
|
| Conventional oven | |
|
| Extra interior 12 volt lights | |
|
| Battery pack | |
|
| Electric brakes | |
|
| Gravel shield | |
|
| 8 ft awning | |
|
| 10 ft awning | |
|
| 12 ft awning | |
|
| TV antenna | |
|
| Dual gas tanks | |
|
| Screen door | |
|
| Small window over range | |
|
| Front cabinets | |
|
| Rear cabinets | |
|
| Side cabinets | |
|
| Cabinet over sink | |
|
| Silverware drawer | |
|
| Outside step | |
|
| 2″ reciever for bike racks | |
|
| Exterior ground fault outlet | |
|
| Stove cover | |
|

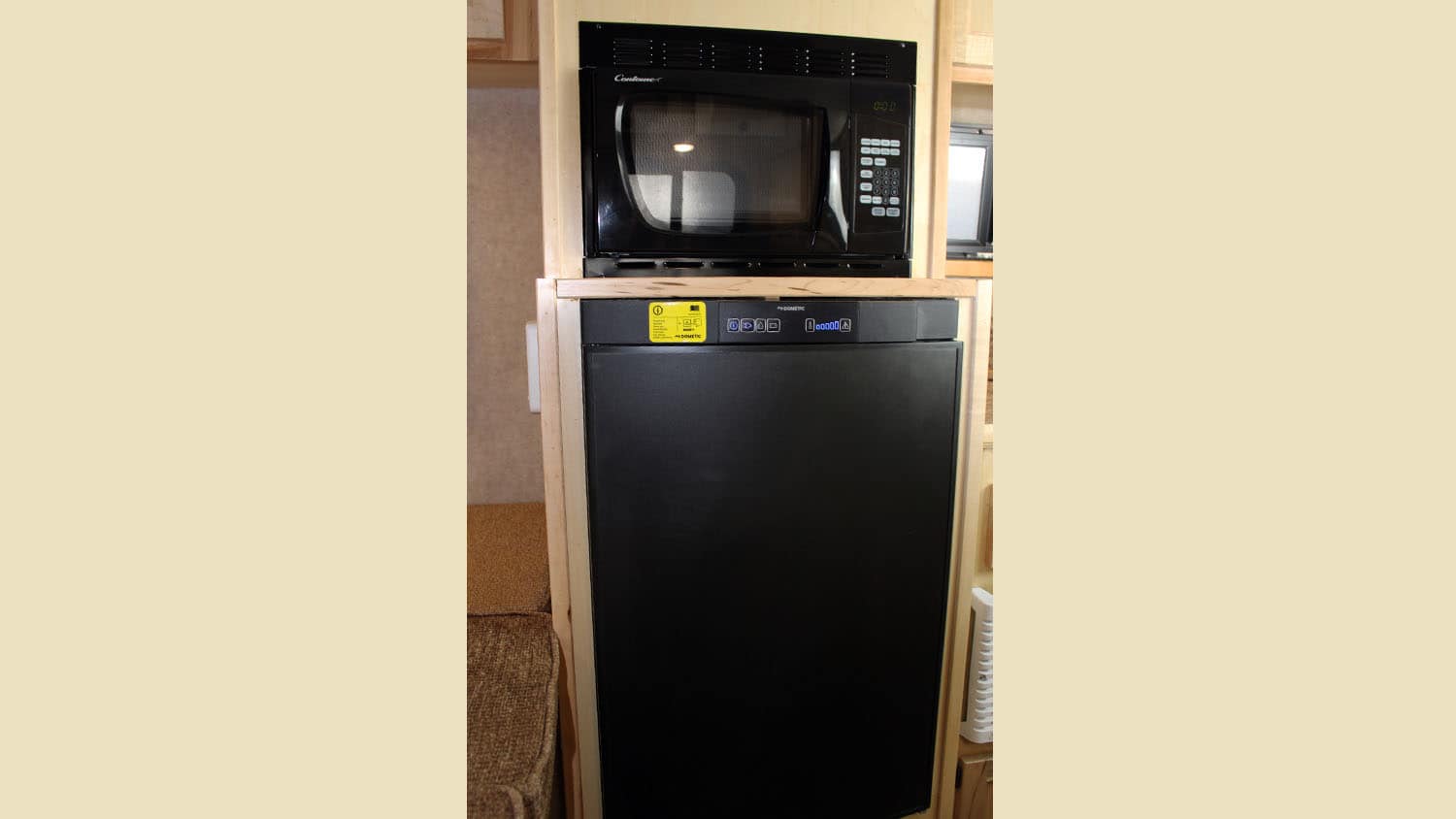

| Microwave oven | |
|
| Wheel on jack | |
|
| 3″ raise | |
|
| Gas & electric hot water heater | |
|
| Gas hot water heater | |
|
| Group 27 battery pack | |
|
| 12 volt water pump | |
|
| Splash guard (per side) | |
|
| Vinyl floor | |
|
| Extra fresh water tank | |
|
| Deluxe curtains | |
|
| Deluxe carpet | |
|
| Deluxe blue/grey wall liner | |
|
| Sink in bathroom | |
|
| Propane gauge | |
|
| Heat strip for roof air | |
|
| 12 volt plug | |
|
| Extra 120 volt interior plugs | |
|
| Grey water tank | |
|
| Phone jack | |
|
| Front porch light | |
|
